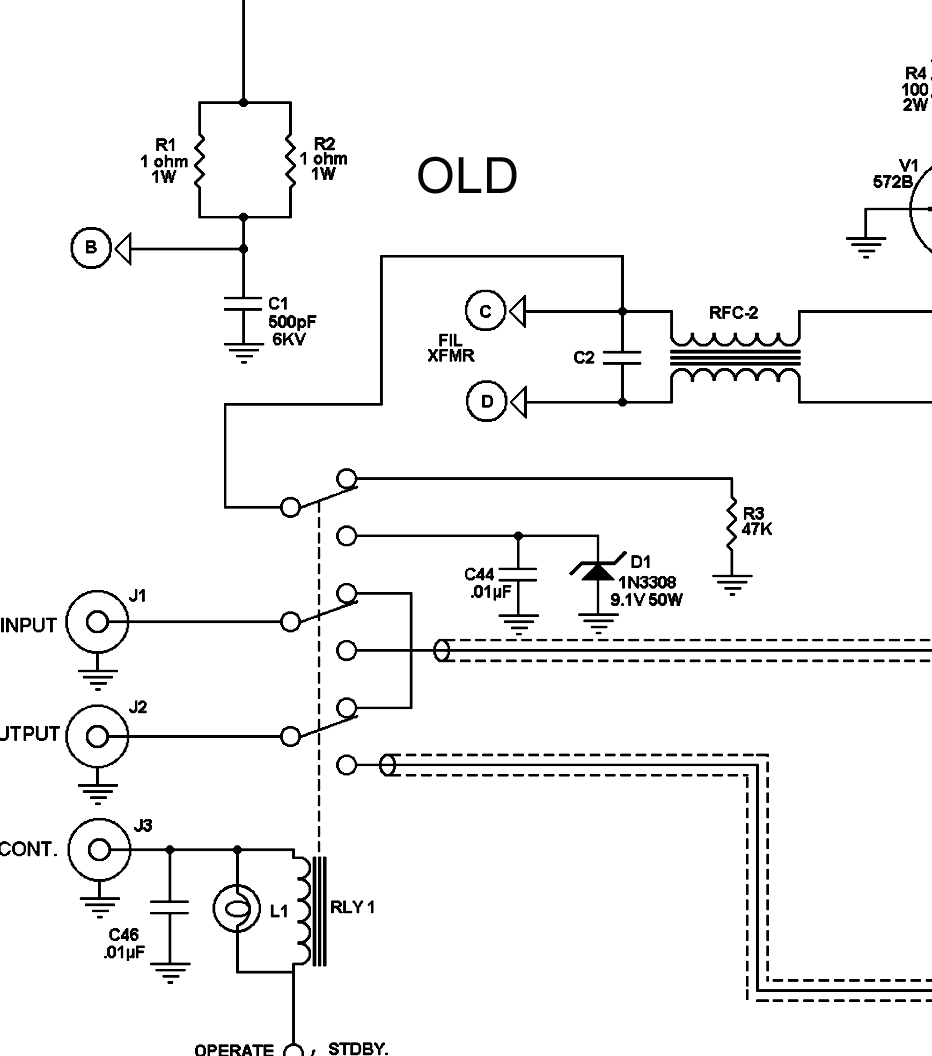

The Clipperton originally feeds the cathode from one side of the filament transformer at wire C. This causes hum in the signal.

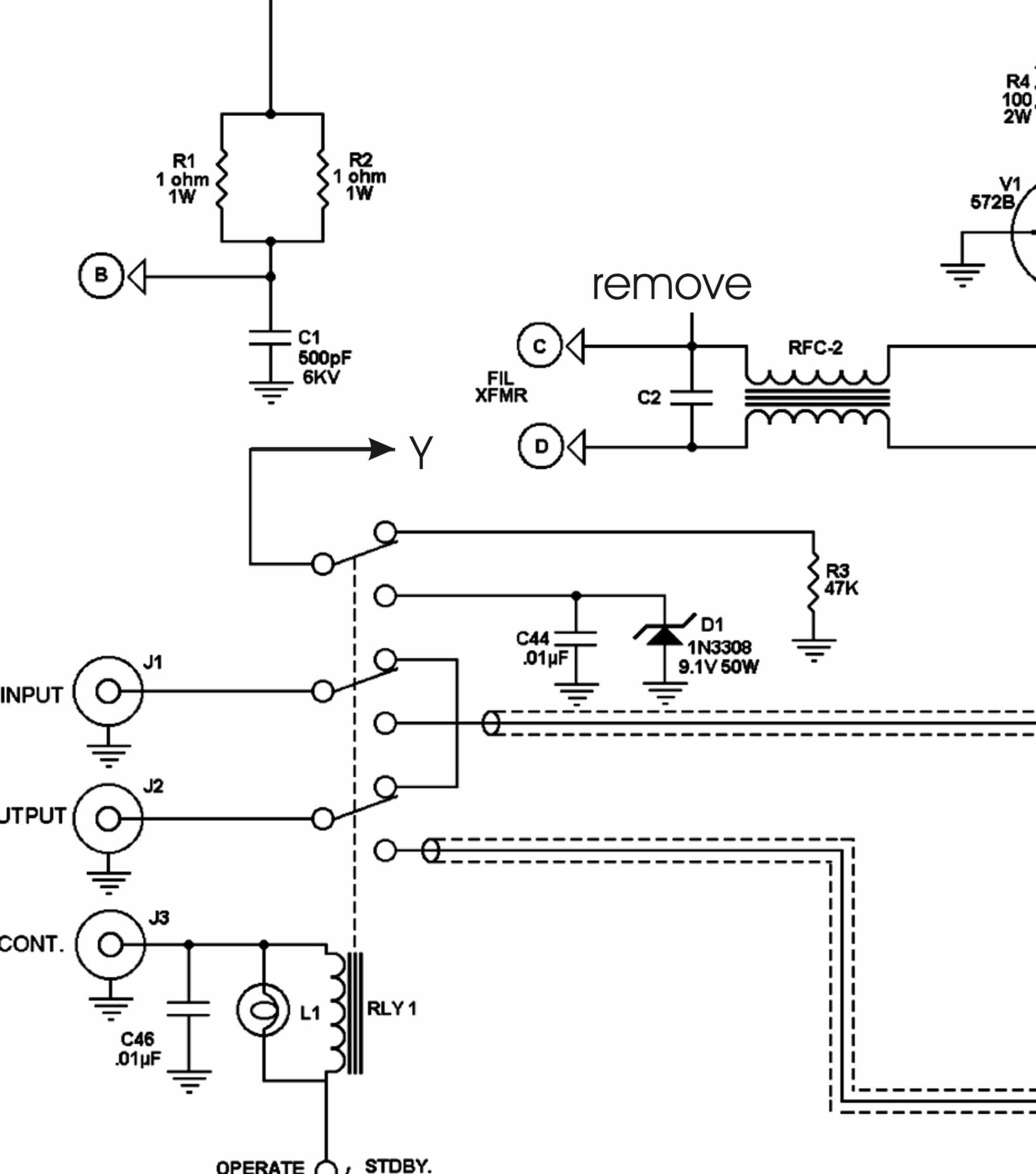

Remove the relay wire to point C and rewire to either of the circuits shown below:
|
Clipperton |
|
The Clipperton originally feeds the cathode from one side of the filament transformer at wire C. This causes hum in the signal.
Remove the relay wire to point C and rewire to either of the circuits shown below:
|
